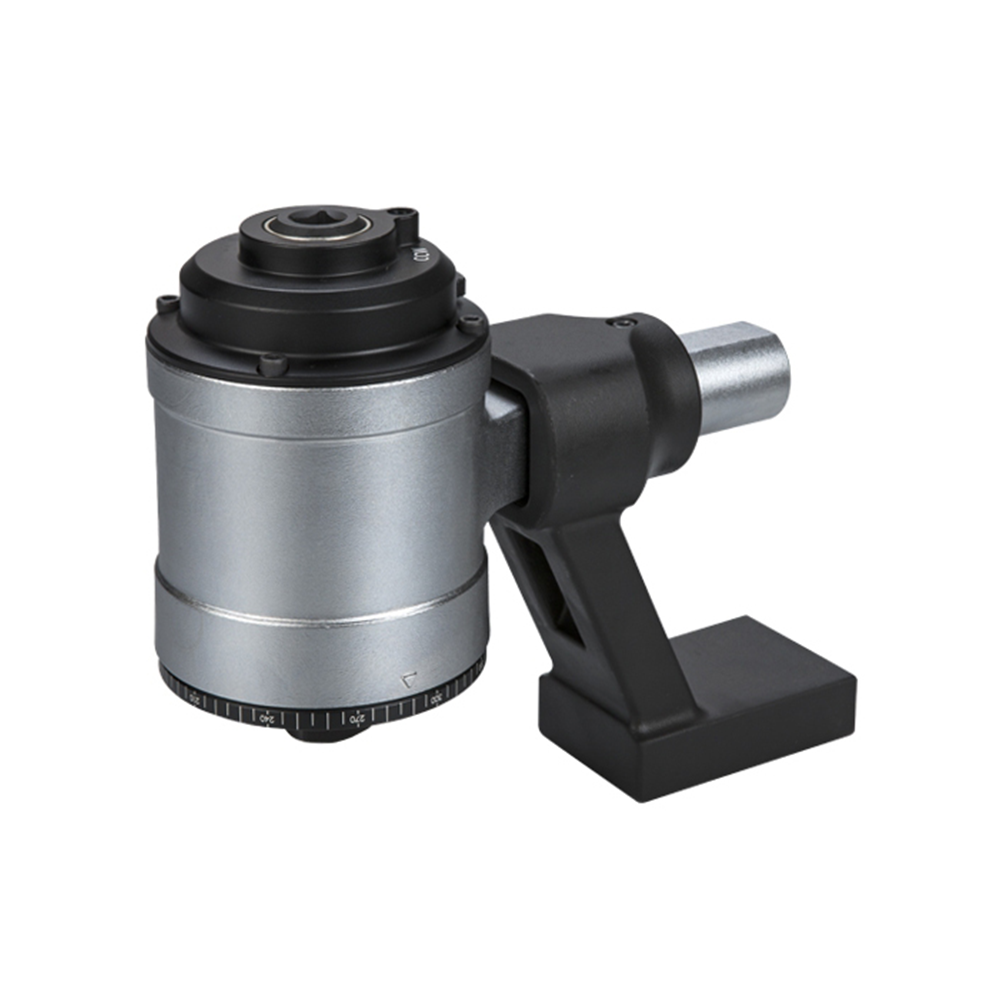

Torque Multiplier 3000NM/4500NM

• With high ratio gearbox 26:1, multiplication accuracy better than ±5%.
• High ratios offer a idea to replace long lever arms and heavy wrenches.

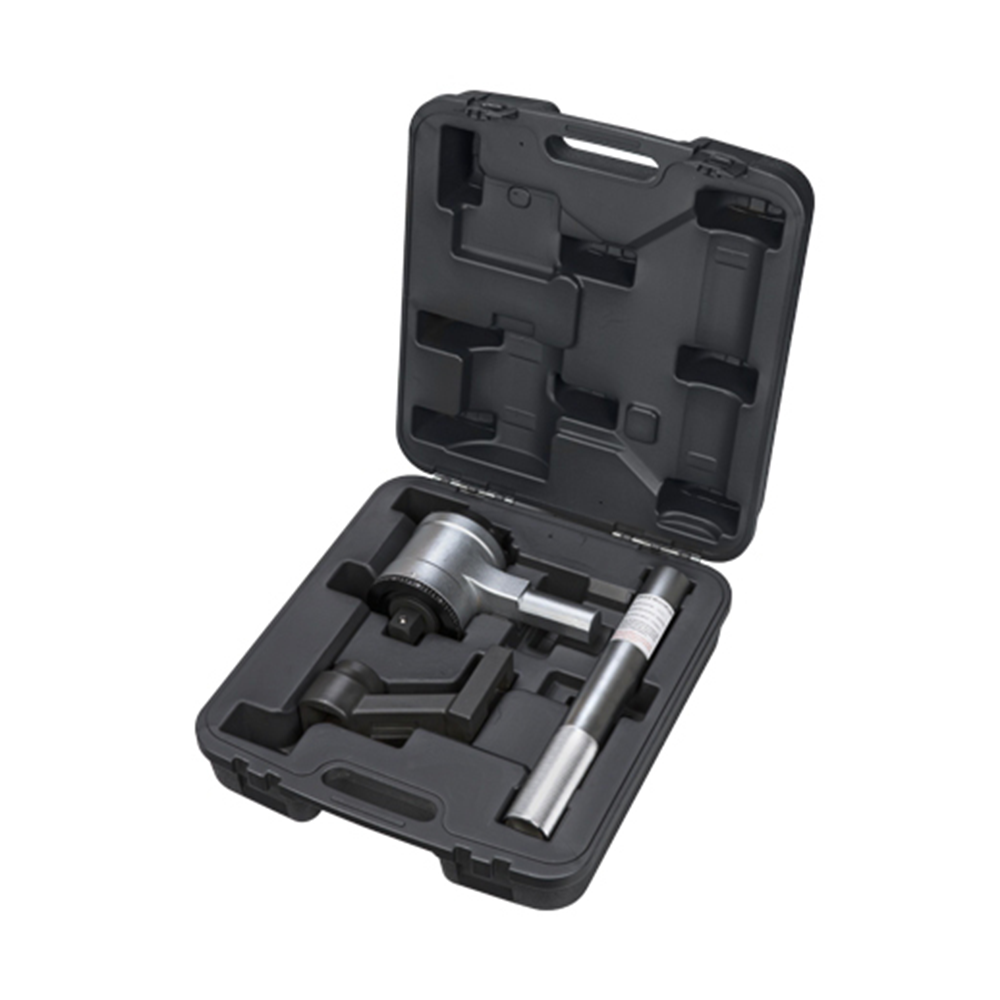

• Supplied with 2 different reaction bar.
• Robust construction with no maintenance necessary and long lifetime use.

描述

描述

01 Input End :
Chromium-molybdenum alloy steel brings better strength and life cycle.

02 Safety Device :

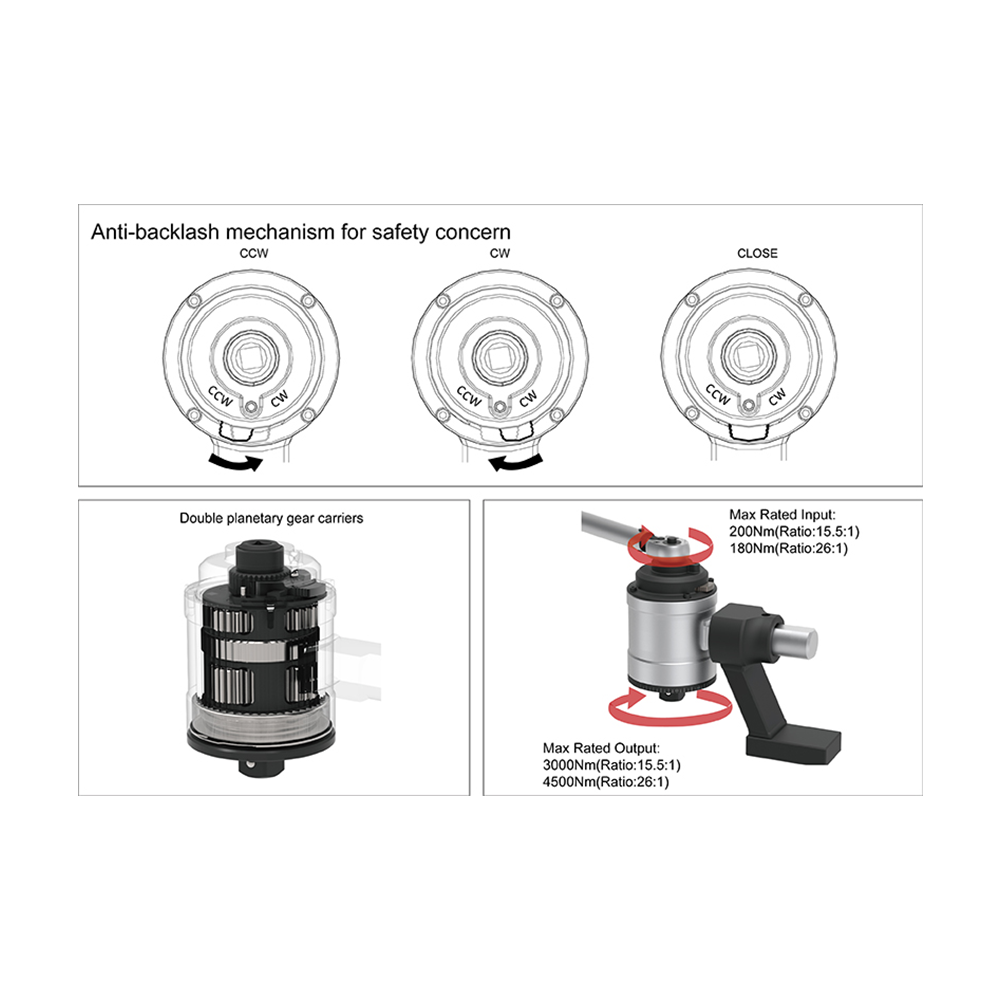

Anti-backlash mechanism for safety concern and comfortable operation.

03 Main Body :
Electroplating Finished; good for anti-corrosion and anti-abrasion.
Planetary gear mechanism, double planetary-gear-carriers brings high load capacity with high ratio 26:1.

04 Angle Protractor :
For easy torque setting and angle tightening.

05 Output End :
chromium-molybdenum alloy steel brings better strength and life cycle.

06 Reaction Arm :
Two alternative reaction bars can be applied to different working environment.
