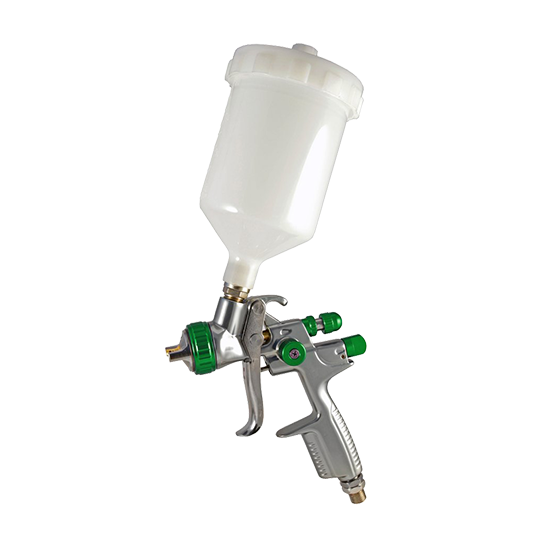

HVLP Gravity Cup Air Spray Gun
Specification :
• Fluid Tip size (I.D.) : Ø1.3 mm
• Air Pressure : 1.5-2.0 bar (21.75-29 psi)
• Air Inlet : 1/4″
• Fluid Inlet : M16 x 1.5
• Air Consumption : 350 L/min
• Weight / with Cup : 425 / 600 g
• Capacity of Cup : 0.6 L
Features :
• Available Nozzle Size : Ø1.0, Ø1.3, Ø1.6, Ø1.8, Ø2.0 mm
• Spray pattern : 30 cm
• Forged gun body
• High transfer efficiency : Reduce overspray and save painting cost.
• Top quality spraying result makes this spray gun the ideal for manufacturing, building sector and automotive industry.
