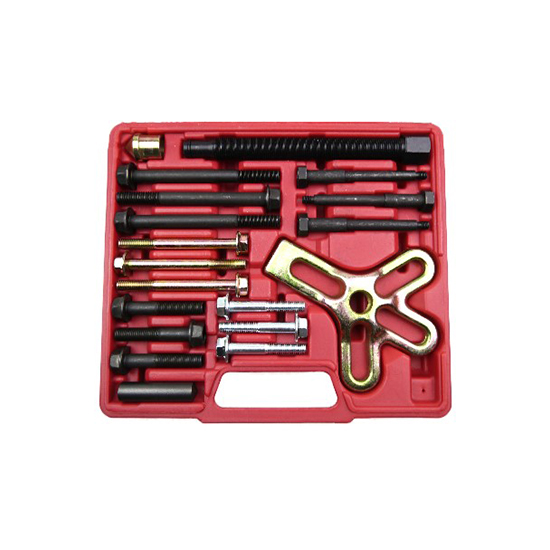

Harmonic Balancer Puller Kit
• Includes :
3 black-oxide plated 3/8″ x 2″ fine 24 pitch bolts
3 nickel-plated 5/16″ x 2″ 18 coarse pitch bolts
3 yellow-plated M8 – 1.25 x 80mm metric bolts
3 black oxide-plated 3/8″ – 16 x 4″ coarse bolts
Bolts for GM 3300 & 3800 V6 Engines
• Remove the retainer bolt from the balancer.
• Carefully choose the proper size bolts that fit holes in balancer.
• Place bolts through the slots in the puller making sure the washer head rests on the flat side of the casting.
• Carefully thread the bolts into the balancer evenly.
• Select the flat or pointed cap as needed and fit over the end of the large center forcing screw. Turn forcing screw slowly until balancer is removed.
