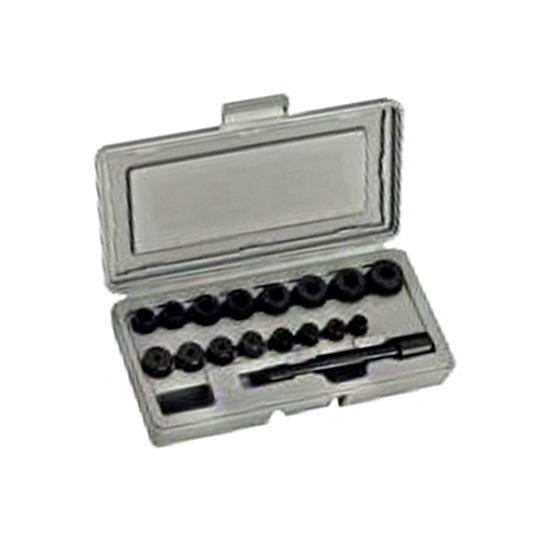

17PC Universal Clutch Alignment Tool Set
• Chemically blackened steel components in presentation box.
• Aids alignment of clutch plate for assembly.
• Applications :
Audi, Citroen, Fiat, Ford, Honda, Mazda, Mitsubishi, Nissan, Opel, Peugeot, Renault, Rover, Saab, Toyota, Vauxhall, VW, Volvo.
Center Bush Size End Bush Size
……A…x…B…x….C……….. A….x…B…x….C……..
1) 15.5 x 14.2 x 26.6mm 1) 12.6 x 10.8 x 19.2mm
2) 16.7 x 15.4 x 27.0mm 2) 14.8 x 12.2 x 19.4mm
3) 19.0 x 17.5 x 28.0mm 3) 15.0 x 13.5 x 19.3mm
4) 20.0 x 18.6 x 27.5mm 4) 16.0 x 14.7 x 19.7mm
5) 21.4 x 20.0 x 27.4mm 5) 17.7 x 15.8 x 19.4mm
6) 23.0 x 21.6 x 27.5mm 6) 19.0 x 17.1 x 19.3mm
7) 23.5 x 22.0 x 27.5mm 7) 20.0 x 18.3 x 19.1mm
8) 26.6 x 24.2 x 27.5mm 8) 21.6 x 20.0 x 19.1mm
